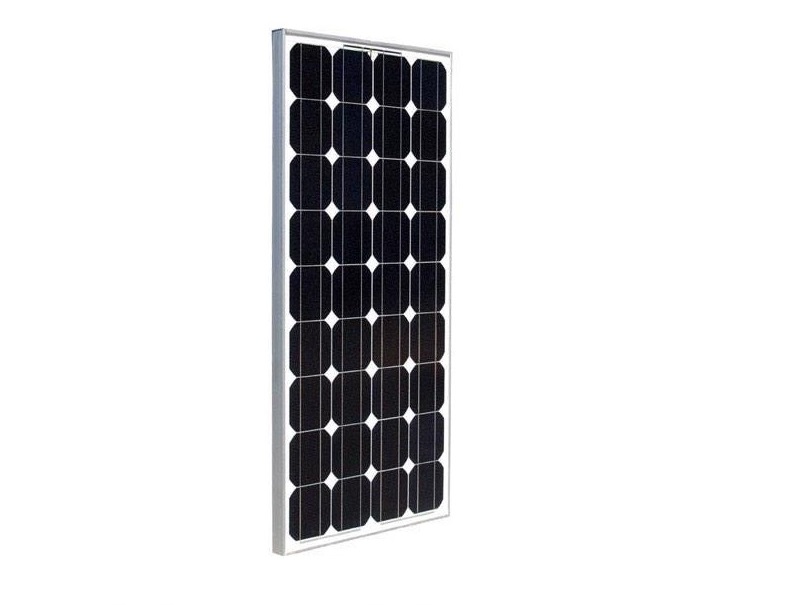

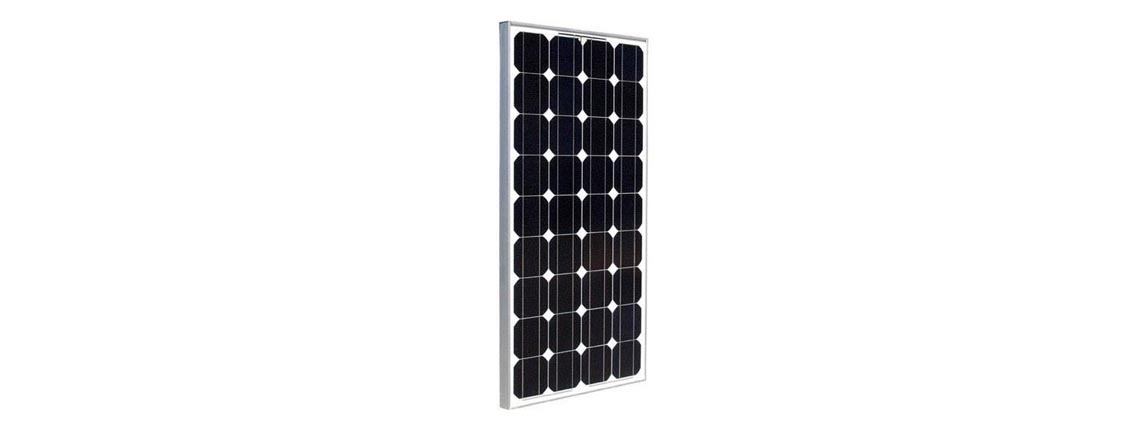

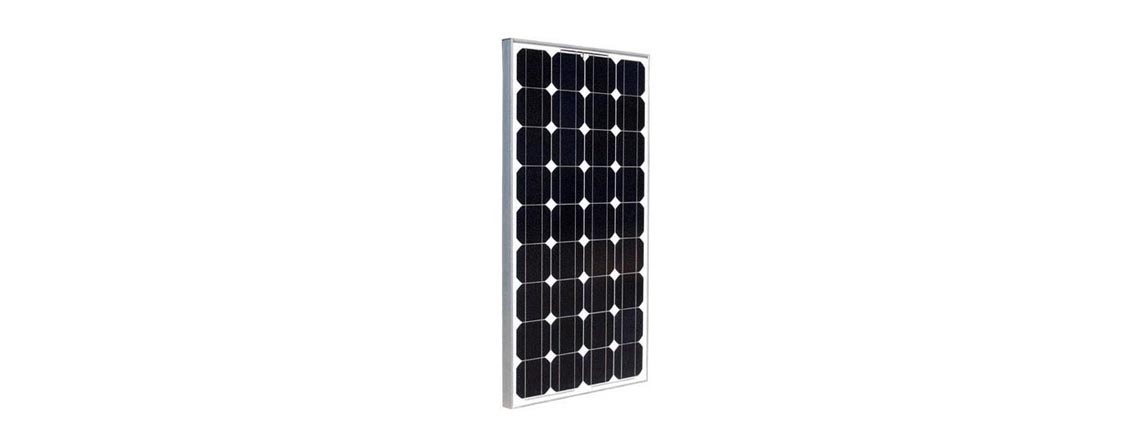

Product Specification "monocrystallin 150w" :
Maximum Power(W) monocrystallin 150w : module
Optimum Power Voltage(Vmp) : 18.4V
Optimum Operatige Current(Imp): 9.3A
Open Circuit Voltage(Voc) : 21.5V
Short Circuit Current(Isc) : 9.5A

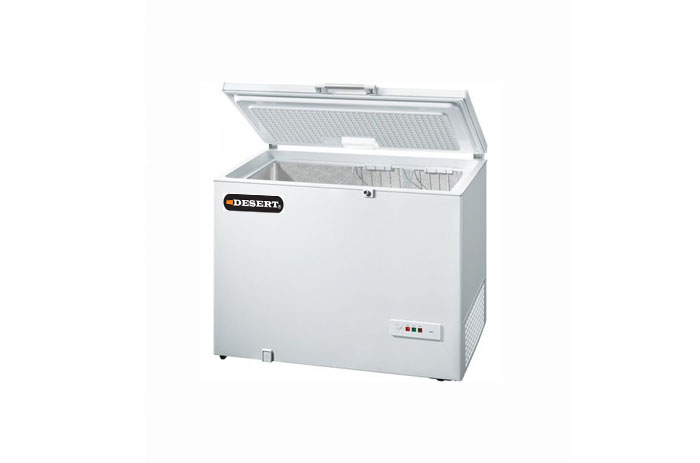

Net Capacity : 250 Liters
Temperature : -18~0?
Coolant : R134a, totally CFC free
Isolation : C-pentane,115mm thick
Input Power : 60W DC
Power Supply : DC: 12V/24V(automatic changeover)
AC supply : AC: 240V/50Hz
Body size : W1080 x D740 x H850 mm
Packing size : W1140x D830 x H935mm
Weight : 64kg/net, 70kg/gross

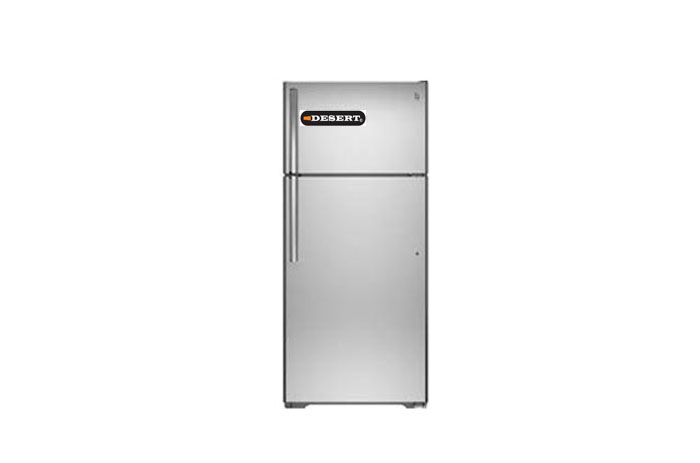

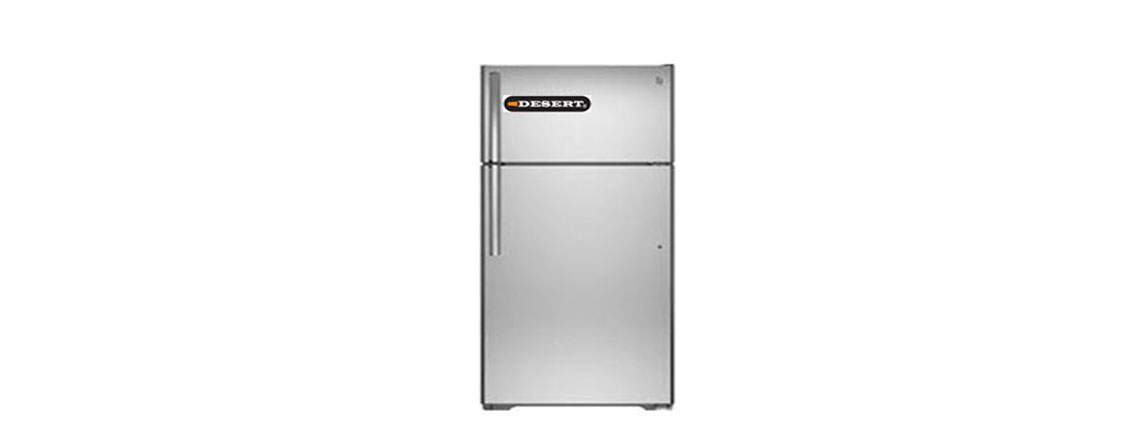

Model : DS-04
Net volume : 330L
Air compressor : DANFOSS BD50F DC24V –AC230
Input Power : 60w
Climate type : N/SN/ST
The refrigeration temperature : 0-10<=-18
The net weight/gross weight : 79/82kg
Net Capacity: FRIDGE: 232L; FREEZER: 98L;
Body size: 66*60*192CM； pack: 70*64*196CM
Product Description:

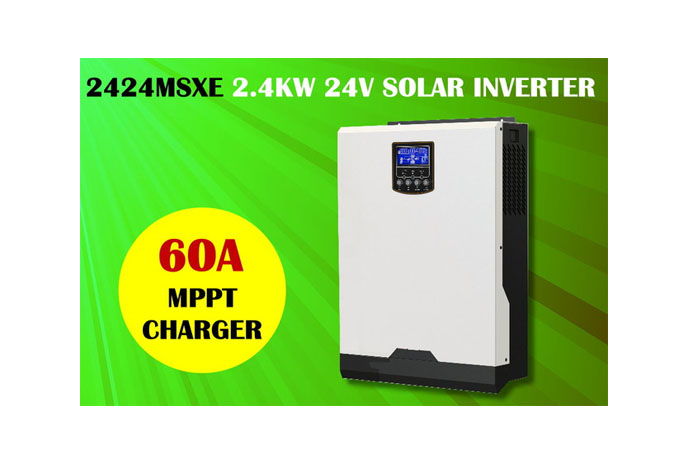

This PIP-2424MSXE is a 2400w continuous / 4800w surge, 24V DC input Pure Sine Wave inverter-charger featuring:
2.4KW pure sine wave output with up to 2X surge max 5 seconds
Built-in MPPT SOLAR charger 60A max and
Built-in 3-stage high efficiency battery charger 60A
Lighter more compact design ,
Built-in EQUALIZATION CHARGE max 31.5V
Fuse protection against reverse polarity
Increased DC limit up to 33V! and
Increased bulk/float voltage up to 31.5V!
Dual priority operation selectable: AC vs. DC mode
Free monitoring software
Adjustable AC input voltage 90~280VAC and
Works with 24V battery system only

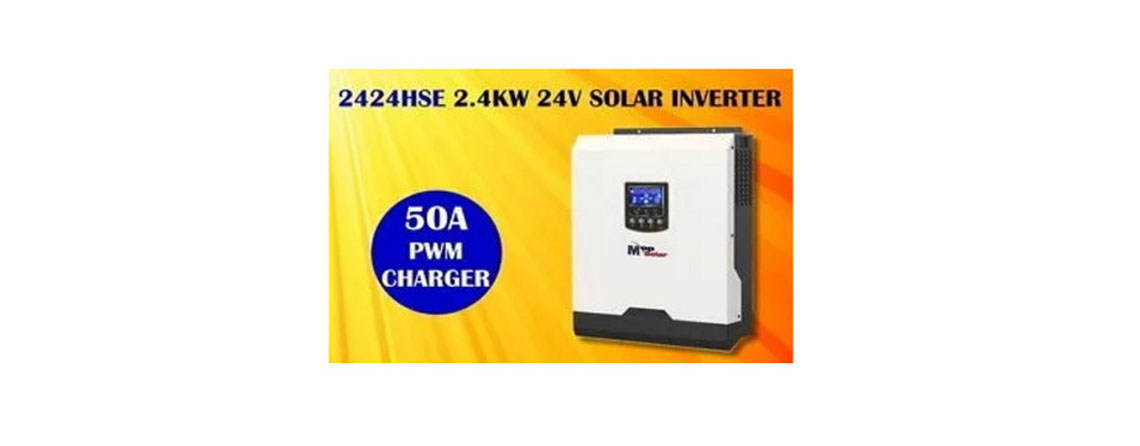

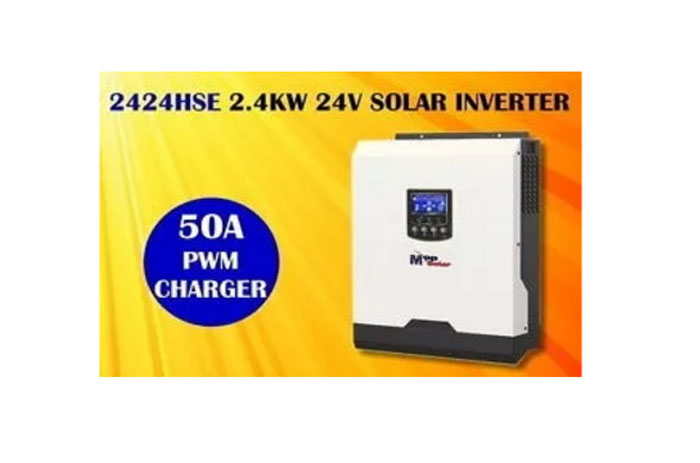

PIP-2424HSE 2400w hybrid Solar Inverter charger 24v 230v + 50A PWM solar charger + 25A battery charger Ideal for arming high performance ups systems, with the possibility to connect solar panels and bank

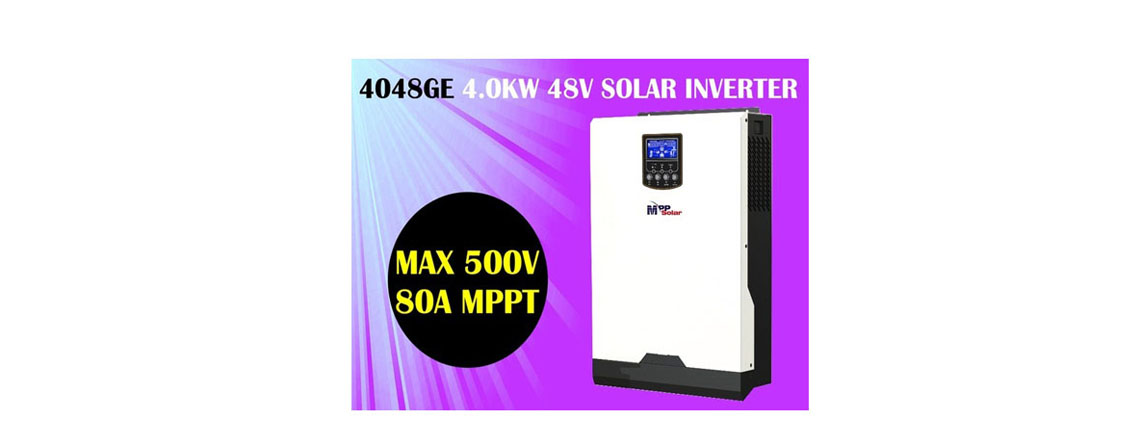

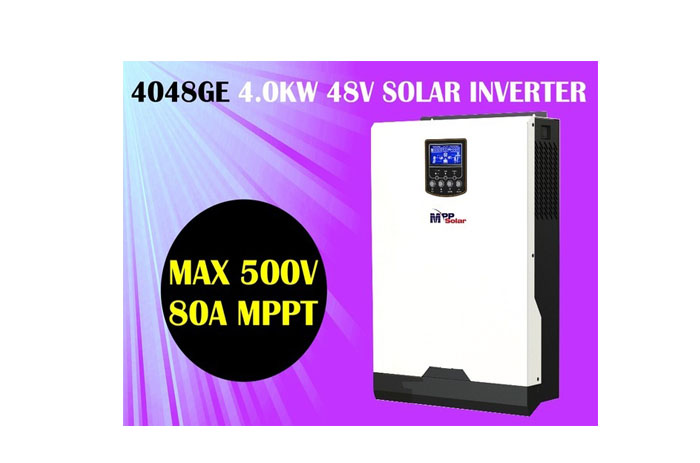

5kva 4000w pure sine inverter 48vdc 230vac single phase + High PV input 500vdc 80A MPPT solar charger + Battery charger 60A features :
NEW! High PV input MPPT charger 80A, PV input voltage 500vdc
4000w pure sine inverter/ surge power 8000w 48vdc 220-240vac
NEW! built-in 60A battery charger with EQUALIZATION feature max 61V
Max solar power 4000W
NEW! fuse protection (against dc reverse polarity)
MPPT 80A solar + UTILITY 60A charger
4.0kw max continuous output pure sine wave
230v nominal AC input and output (220-240v ok)
Specifications

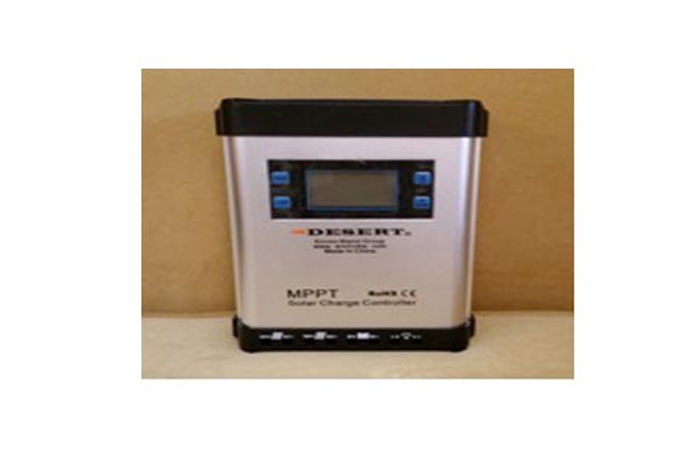

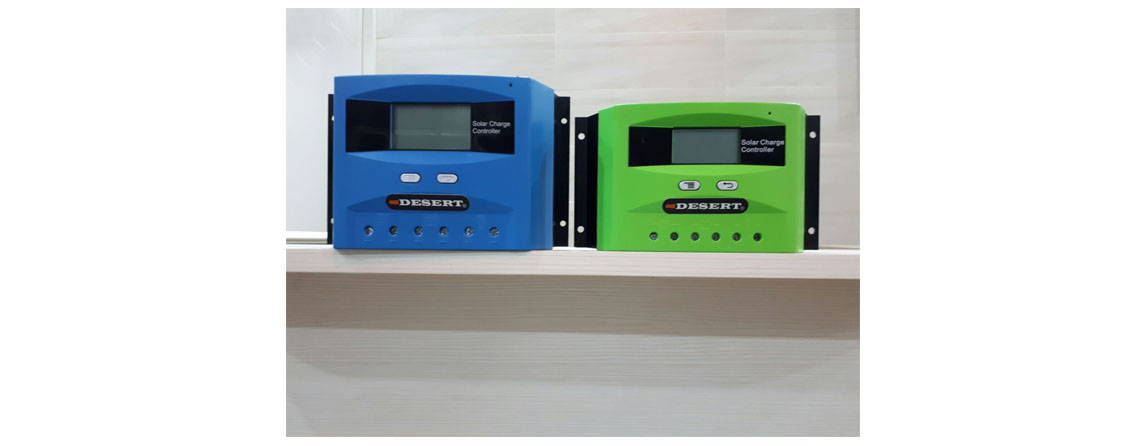

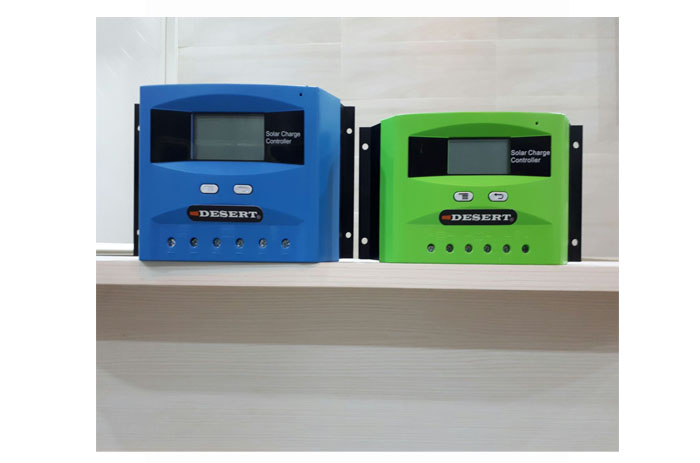

solar charge controller, PV Controller ,MPPT
Product features:
Applicable to various types of batteries,MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration)
Thunder protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection
●Solar Deep Cycle Specialization: GEL technology prevents stratification of the plates greatly increasing the number of cycles the battery can withstand.
● Maintenance Free: Gas re-combination system makes it free of maintenance
● Leak Free: Gel technology is applied to impregnate electrolyte on the separator to prevent leakage
● Safety: Specially designed anti-explosion filter and safety valves prevent gas leakage when overcharged
Specifications
Solar Gel Batteries, maintenance free, super for frequent deep cycles,renewable energy storage applications, long-lasting energy
Desert Solar Gel battery are true maintenance free sealed batteries engineered specifically to satisfy the need
for frequent deep cycles from photovoltaic(PV) and renewable enerty storage applications. We are confident that our technology intensive, long-lasting.
